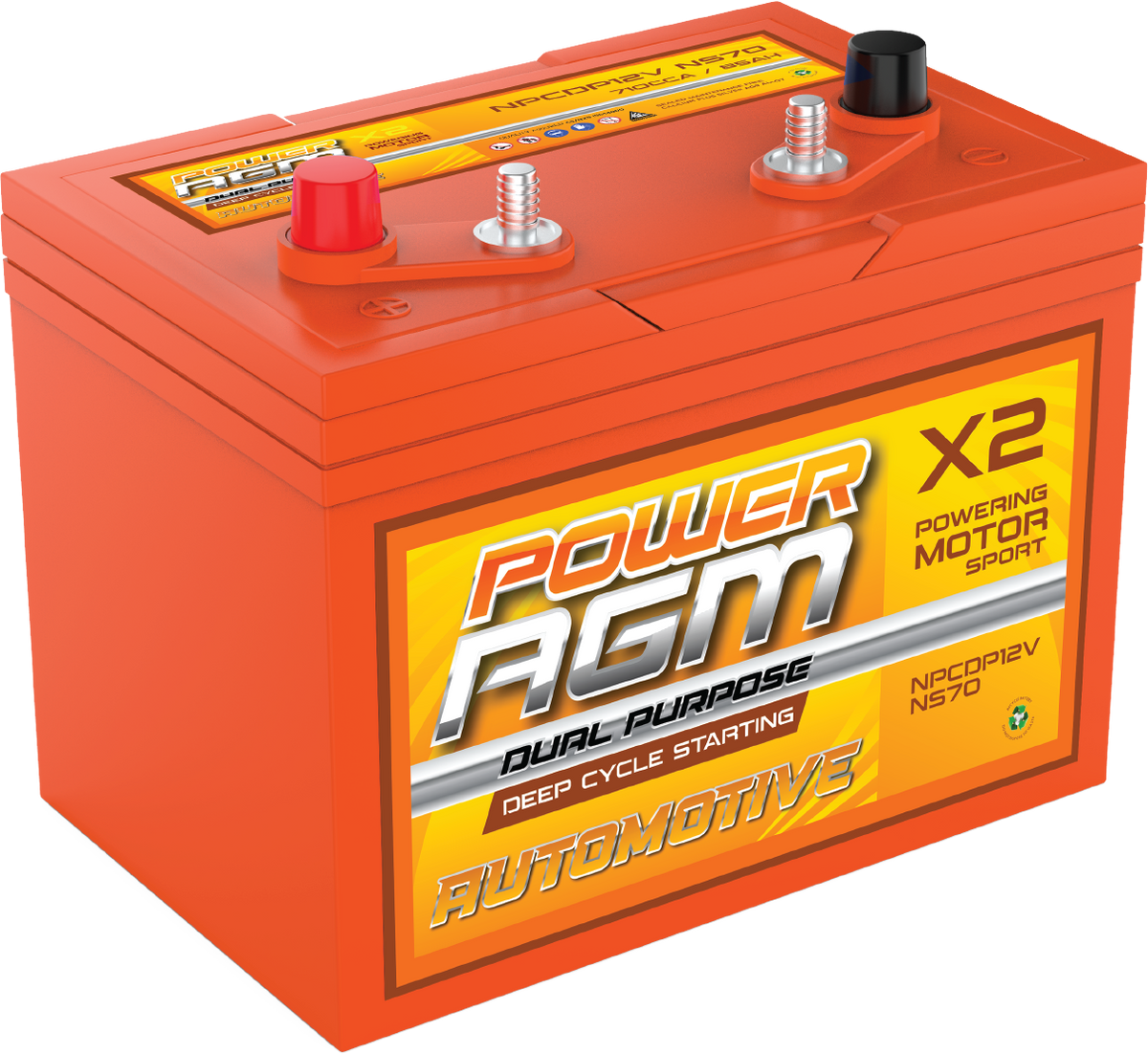

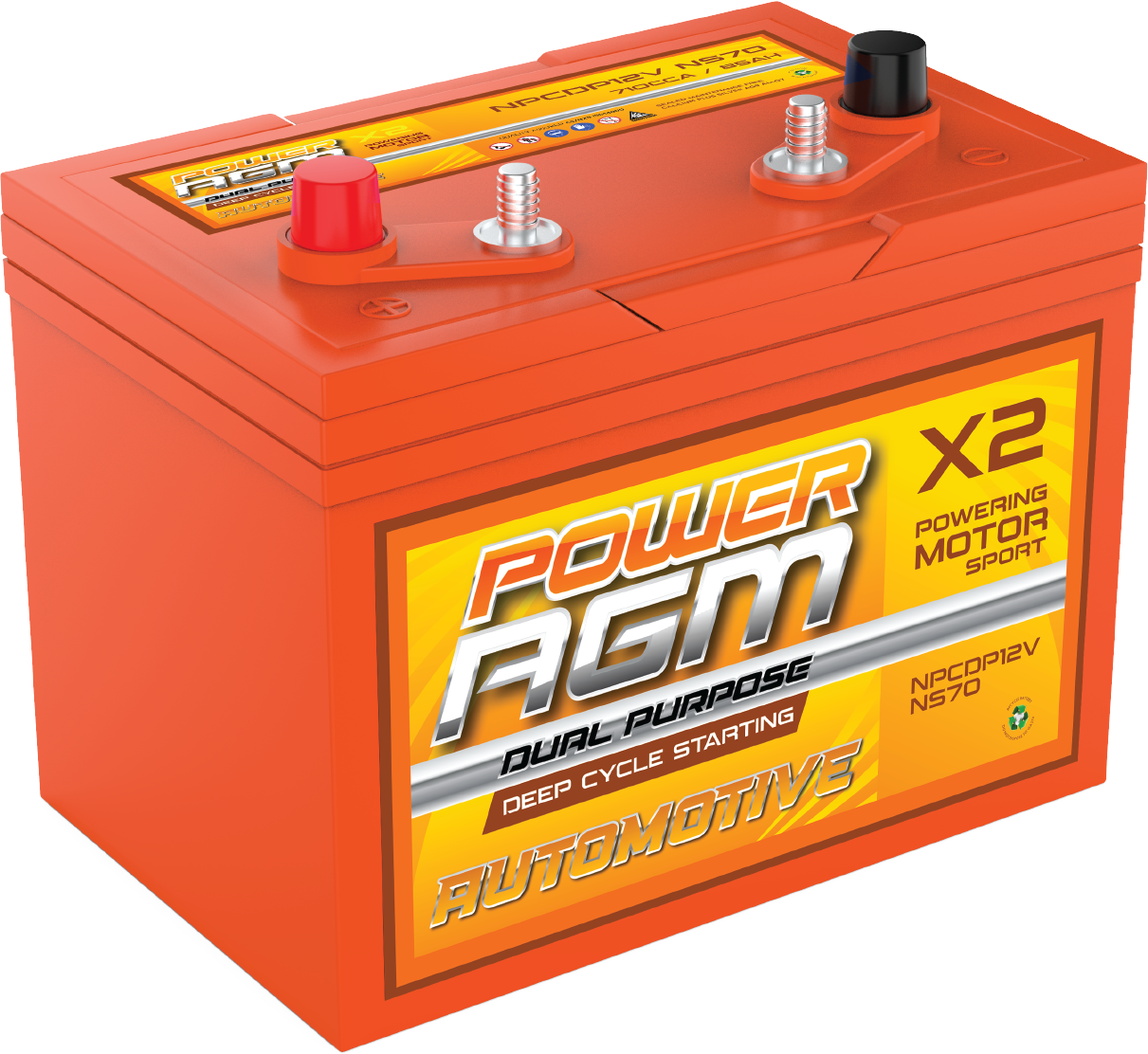

NPCDP12VNS70 POWER AGM DUAL PURPOSE AUTOMOTIVE SERIES DEEP CYCLE STARTING BATTERY

POWER AGM Dual Purpose Automotive series batteries are an absorbed glass mat (AGM) sealed, maintenance-free battery featuring several design elements to provide optimum performance. Robust plates extend the life cycle of Power AGM Dual Purpose Batteries. A separator of glass fibres serves to isolate the positive and negative plates while acting as a pad to absorb the electrolyte. The separator is maintained under compression between plates to assure contact with plate surfaces. A computer-generated grid design is optimized for high-power density. Low calcium grid alloy reduces gas emissions and a flame arresting; one-way pressure relief vent prevents buildup of excessive pressure. Power AGM Dual Purpose Batteries are low temperature tolerant, shock and vibration resistant and have a low internal resistance for higher discharge current and higher charging efficiency. Designed with advanced battery technology, Power AGM Dual Purpose Batteries deliver dependable power with long battery life.

Special Features:

• Heat protected casing designed for under bonnet use
• Starting use capability CCA
• Cycling capability AH
• Marine style terminals to connect accessories with ease.
• Up to 3 years warranty

Valve regulated maintenance free design (AGM battery), long service life, suitable for deep cycle use:

The electrolyte is adsorbed in the AGM separator, so there is no liquid electrolyte inside the battery, this can reduce acid stratification and prolong service life. The safety valve keeps a certain pressure inside the battery, and the hydrogen and oxygen produced are compounded into water inside, which greatly reduces the water loss. Valve regulated maintenance free design (AGM battery), long service life, suitable for deep cycle use:

Special grid for deep cycle batteries:

Thickened and dense rib design, excellent corrosion resistance.

Rounded and chamfered design of the grid will not pierce the separator and cause short circuit of the battery.

Roughened surface of cast grid for tighter bonding with paste

Special grid alloy formula, great corrosion resistance

 Optimized for deep cycle conditions

Add high strength fibres to enhance active material binding force

Add 4BS crystal seed and use high temperature commix paste process to increase the 4BS skeleton content in the plate, to enhance the life of the active material.

High temperature solidify process to increase the corrosion layer on the surface of the plate grid and improve the bonding strength of the active material to the plate grid.

 Dedicated AGM separator

Tightly wrapped plate to avoid the active material shedding

Highly acid absorbing type AGM separator, which can absorb more electrolyte in the same volume and prolong service life.

Thicker separator and use high strength fibres for better resistance to pulling and puncturing, preventing breakage and punctured short circuit.
